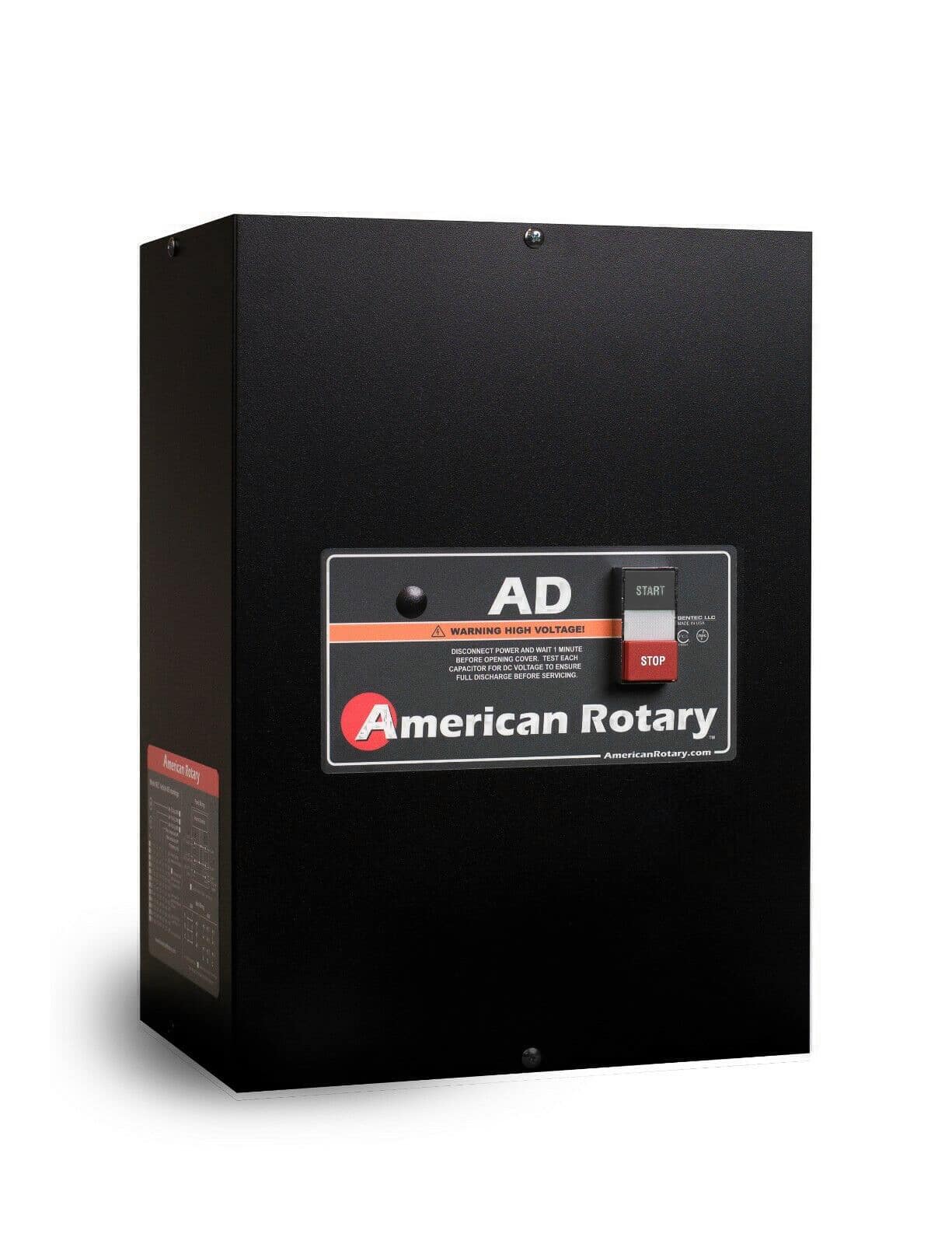

Phase Converter Panel – This DIY STK Rotary Phase Converter Panel is manufactured in Wisconsin by American Rotary and can be paired with your stock motor. (Motor not included, this is the converter panel only)
*This is not a replacement panel.
A detailed installation manual and quick start guide are included.

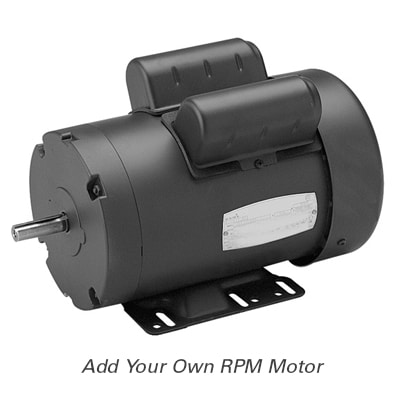

REQUIRED: Delta wound connection, 3-phase stock motor, 60 Hz, 208-240v, recommended 1700-1750 RPM. The motor you are pairing with the STK panel must match in HP.
In this video, we show the basic installation techniques of the American Rotary Phase Converter Panel. The idea is to show how easy it is to install, and also to provide a video reference for our customers. The video is just under 4 minutes long.
| Phase Converter Model | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single motor start max. (HP) | 1.5 | 2.5 | 3.5 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 | 40 |
| Total Combined Loads* | Call for Combined Load Sizing | |||||||||||
| CNC/VFD (HP) | 1.5 | 2.5 | 3.5 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 | 40 |
| Resistive/Oven (amps) | 4.8 | 7.5 | 11 | 14 | 21 | 27 | 34 | 40 | 52 | 65 | 75 | 100 |
| Rectified/Welder (amps) | 4.8 | 7.5 | 11 | 14 | 21 | 27 | 34 | 40 | 52 | 65 | 75 | 100 |
*Combined loads vary with type and size of the equipment
Features Gallery
American Rotary engineers the entire phase converter system to provide optimum performance. Our variable impedance generator (VIT)TM and MicroSmartTM controller combine to make the most powerful and precise rotary phase converter on the market.
-

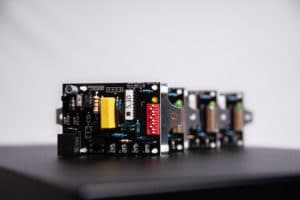

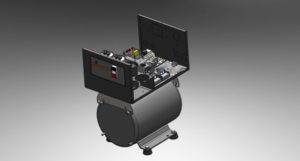

MicroSmart Controller -The American Rotary MicroSmart™ Controller is a patent technology which provides precise control of the phase converter. It monitors the voltage every millisecond providing better voltage control, prolonging the life of the converter, handles significantly more load capacity, and enabling several failsafe features that are only available on American Rotary’s SMART Series™ phase converters. (AD, ADX, AUL, AMP and AI units only)
-
Designed and Manufactured in Wisconsin -The focus of American Rotary is always on innovative engineering, product development and outstanding customer service. The results are great Wisconsin made phase converters that work flawlessly, provide unparalleled performance and are easy to install, all at an affordable price.
-

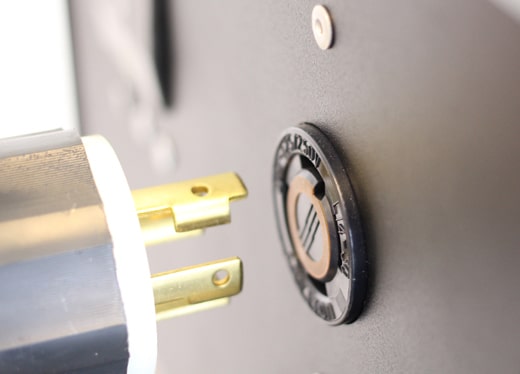

Plug N Play -American Rotary realizes that some equipment just isn’t meant to be hard wired. So it gave every phase converter a space for a twist-lock, 3-phase receptacle and a flush mount 3-phase breaker Great for welders, battery chargers, mobile jobsite converters and more.
-

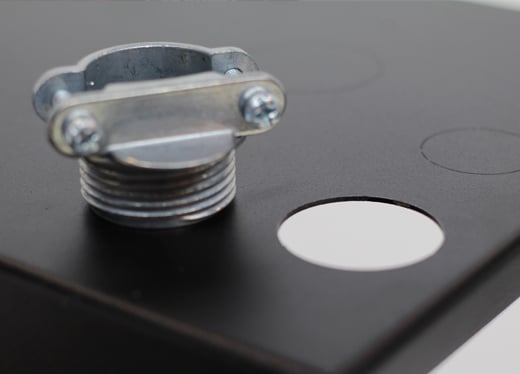

Knockouts -No drilling or punching needed! All the necessary knockouts for installation are provided and powder coated to prevent rust. The knockouts are sized for the maximum anticipated conduit for proper wire gauge per NEC.
