HS-OVN-360-K48-120-15A
Hot Shot 360 Features & Benefits Gallery

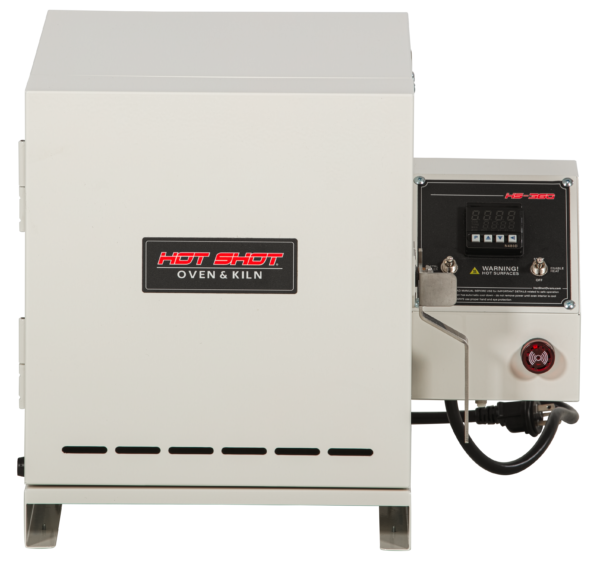

Hot Shot 360 is a heat treating oven and/or kiln that can be used for many different makers. Built with the highest quality products, we are excited to offer an oven that not only is cool to the touch, but has an industry leading mechanical design.
-
Cool to Touch Technology -
-
Cutting Edge Performance -
-
Programmable Alarm -
-
Side Opening Door with Cool Touch Handle -
-
Novus 480D Programmable Controller -
-
Made in Wisconsin -
-
Fan -
-
Relay -
Cool to Touch Technology
Hot Shot Oven & Kilns are equipped with Cool-Touch Technology that provide a safe external temperature to allow for safer operation and protection of its surroundings. Each oven comes with a removable high density kiln floor. This is ideal to assist with project setup or if it needs to be replaced. It is built with a high-quality 304 stainless-steel core construction with a fan cooled external powder coated enclosure. It features a dual layer air plenum for external heat management and precise temperature control.
Cutting Edge Performance
High-efficiency technology allows you to reach the maximum temperature of 2000 degree F/1093 Degrees C with use of the on-screen controller. This unit is equipped with a kiln type “K” thermocouple and 16AWG Kanthal A-1 heating element.
Each piece of insulation is routered to fit perfectly together. This allows for the oven to maintain the temperature perfectly and not fluctuate due to gaps or poor fit. Each piece is routered to fit the heating element perfectly, so it has a snug fit. Each oven comes with a removable high density kiln floor. This is ideal to assist with project setup or if it needs to be replaced.
Programmable Alarm
Each unit comes standard with an integrated alarm that can be set to alert the user when a desired point or temperature is reached in the program.
We also have integrated a safety door switch that will de-energize the heating element when the door is open.
Side Opening Door with Cool Touch Handle
When using a heat-treating oven, it entails removing very hot material from the core to go to its next phase of the process. We designed this oven to have a side opening door that can open far enough to not be in the way. The handle is designed for a one-handed operation for easy and quick removal of the material. Safety is our key concern and with the cool touch handle made from high-quality stainless steel and a door that opens completely out of the way, it keeps the customer safe.
Novus 480D Programmable Controller
This State of the art controller allows you to view and adjust the temperature of your oven making operation easy to use. The upgraded controller allows multiple ramping and holding of temperatures with free QuickTune downloadable software.
Made in Wisconsin
Each Hot Shot Oven is manufactured and tested at Hot Shot Oven & Kilns research and development facility located in West Bend, WI.
Fan
HS Ovens come standard with a rear vented cooling fan. The optional upgrade coming soon for a high flow venting fan.
Relay
Unlike many other ovens & kilns all Hot Shot ovens come standard with a solid state relay. Having a solid state relay eliminates the distractive clicking noise that a mechanical relay makes. A solid state relay is also more dependable and provides a longer life expectancy than that of a mechanical relay.
Advanced Electrical Capabilities

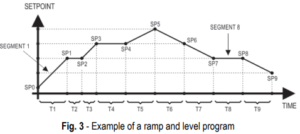

The Hot Shot 360 comes standard with a programmable ramp and soak controller that is preprogrammed and ready to use. The controller can be reprogrammed, with up to nine segments, either manually or with the easy-to-use Quick Tune Software. This unit features an easy-to-read slant top control panel.
Each oven comes equipped with a Solid-State Relay which is robust and provides a completely quiet operation. This Solid-State Relay has no moving parts like a standard mechanical relay allowing the unit to have precise temperature control and operation.
